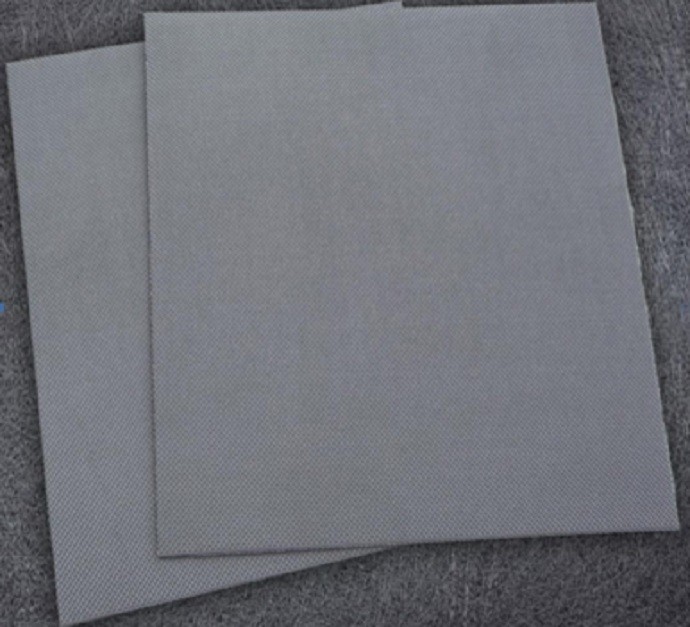

Sany Sintered Stainless Steel Fiber Felt  Introduction

Stainless Steel Sintered Metal Fiber Felt is made ofextremely fine steel fiber (micron grade) by sintering in high temperatureafter special non-woven matching and laying.The stainless steel sintered fiber felt product can achieve higher rating and larger holding capacity,and larger filter area,and can keep the filtering working continuously.

Sany Sintered Stainless Steel Fiber Felt Structure

There are two types of Sany sintered non-woven fiber felt, the conventional sintered fiber felt and the sintered fiber felt with protective mesh. The second type is added a layer of wire mesh(it may be on a side or on the interlayer ) on the conventional sintered fiber felt, or a layer of wire mesh on each side.Then sintering together forms a high strength sintered fiber felt.

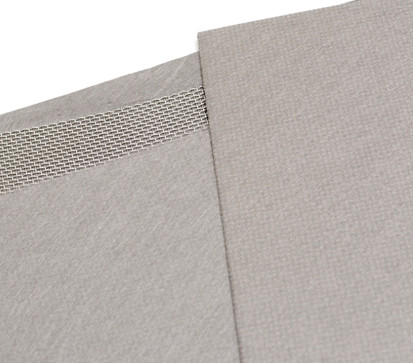

Sany Sintered Fiber Felt With One Layer Protective Mesh Structure

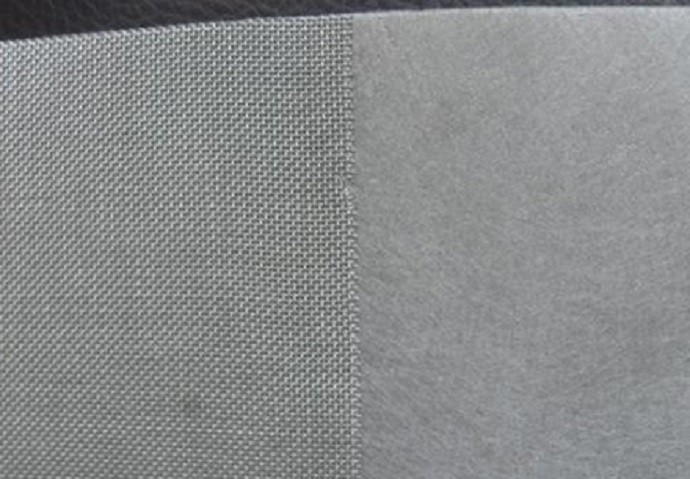

Sintered Fiber Felt With One Layer Protective Mesh On A Side

Sintered Fiber Felt With A Intercalary Support Mesh

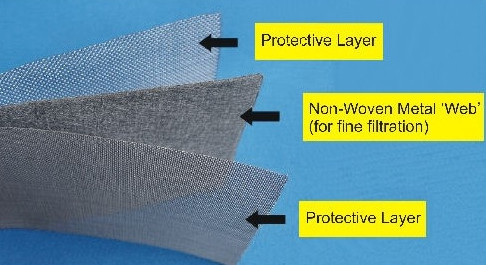

Sintered Fiber Felt With Double Support Mesh

Sany Sintered Stainless Steel Fiber Felt Product Character

1.high dirt hoding capacity , high filtering accuracy , long replacement period

2.high porosity , excellent permeability , low pressure drop and layer flow

3.corrosion and high temperature resistance of acid , alkail and organic solvent , pharmaceutical ect, resistance can be use under 480℃ for long time

4.easy to be processed and welded

5.special specifications are on request

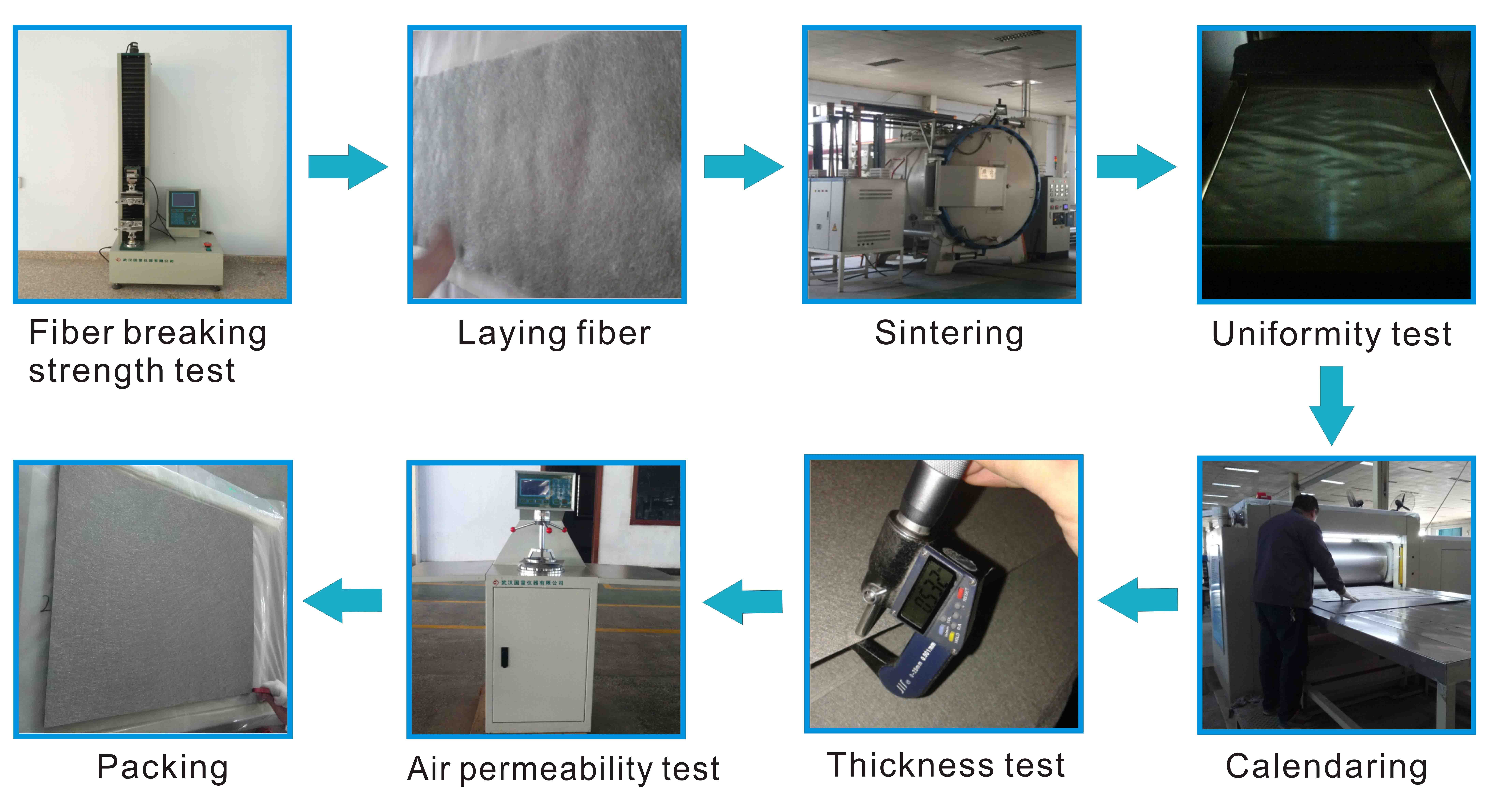

Sany Sintered Stainless Steel Fiber Felt Process

Sany Sintered Stainless Steel Fiber Felt Application

Polymer filtration, Petrochem ical, High temperature gas dedusting, Oil refining process filtration,Adhesive filtration, Pre-filtration of ultrafilter, Vacuum pump protection filter, Filter membrane support body, Catalyst carrier, Automobile airbag, Aircraft ship and other fuel filtration,Hydraulic system filtration,etc

Sany Sintered Stainless Steel Fiber Felt Technical Paramers
