Categories | Sintered Stainless Steel Fiber Felt |
---|---|
Brand | Xinli |
Model | Sintered Fiber Felt |
Material | 100% Stainless Steel 316L |
Application | High viscosity liquid and gas filtration |
Filtration Rate | 3-80um |
Feature | High dirt holding capacity |
Patent | Yes |
Technology | Sintering |
Certificate | ISO9001 |
Shape | Customized |
Sample | Yes |
OEM Serive | Yes |
Unit Price | US $ 55-60 / piece |
FOB port | Qingdao,Tianjin or Other Chinese Ports |
Terms of Payment | L/C, Western Union, MoneyGram, T/T, Paypal |
Update Time | Sep 8,2024 |
Sany sintered non-woven fiber felt introduction
Sany stainless steel sintered metal fiber felt is made of extremely fine steel fiber (micron grade) by sintering in high temperature after special non-woven matching and laying with the pore gradient formed by layers of different pore sizes.The stainless steel sintered fiber felt product can achieve higher rating and larger holding capacity,and larger filter area,and can keep the filtering working continuously.
Sany sintered non-woven fiber felt structure
There are two types of Sany sintered non-woven fiber felt, the conventional sintered fiber felt and the sintered fiber felt with protective mesh. The second type is added a layer of wire mesh(it may be on a side or on the interlayer ) on the conventional sintered fiber felt, or a layer of wire mesh on each side.Then sintering together forms a high strength sintered fiber felt.

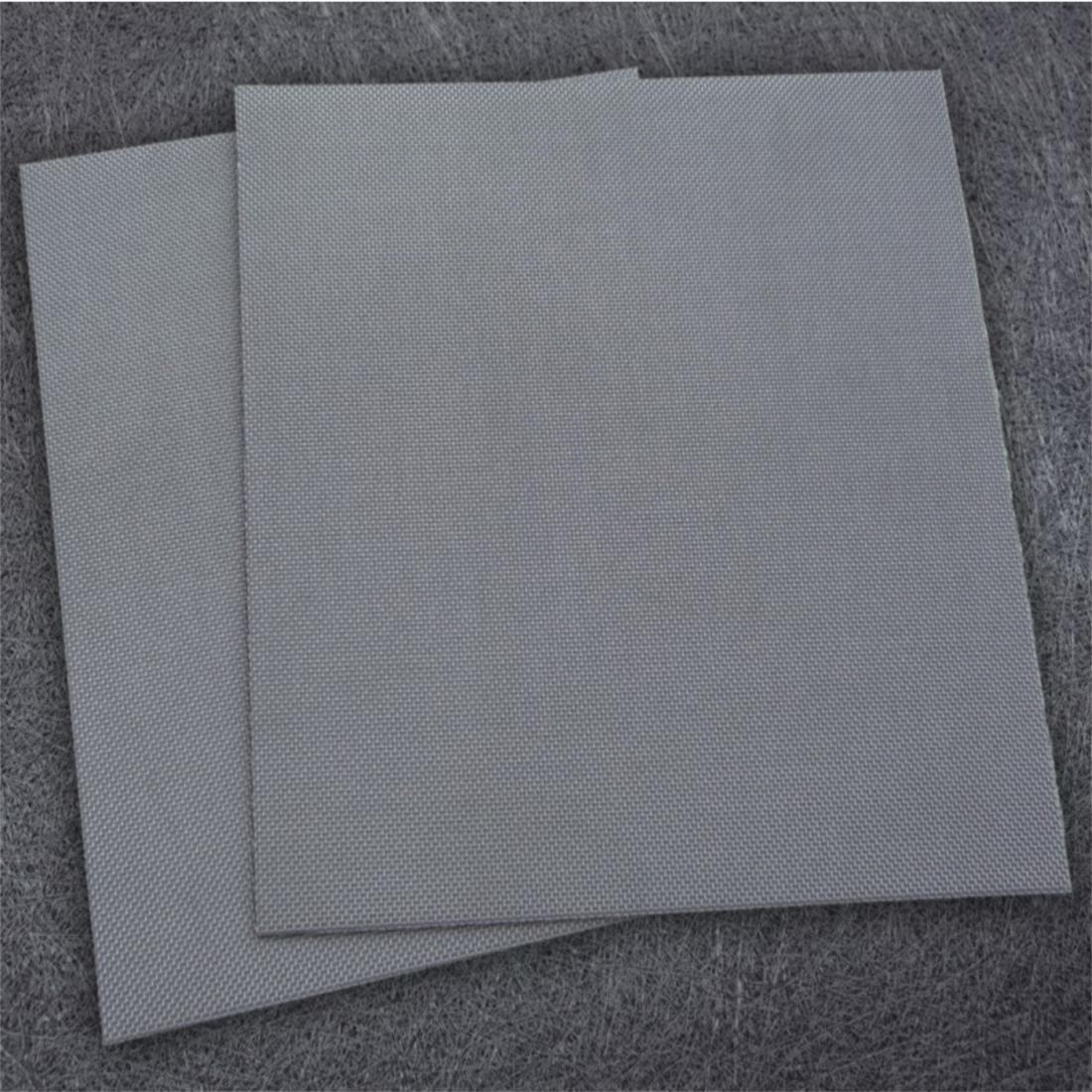

Sany conventional sintered non-woven fiber felt

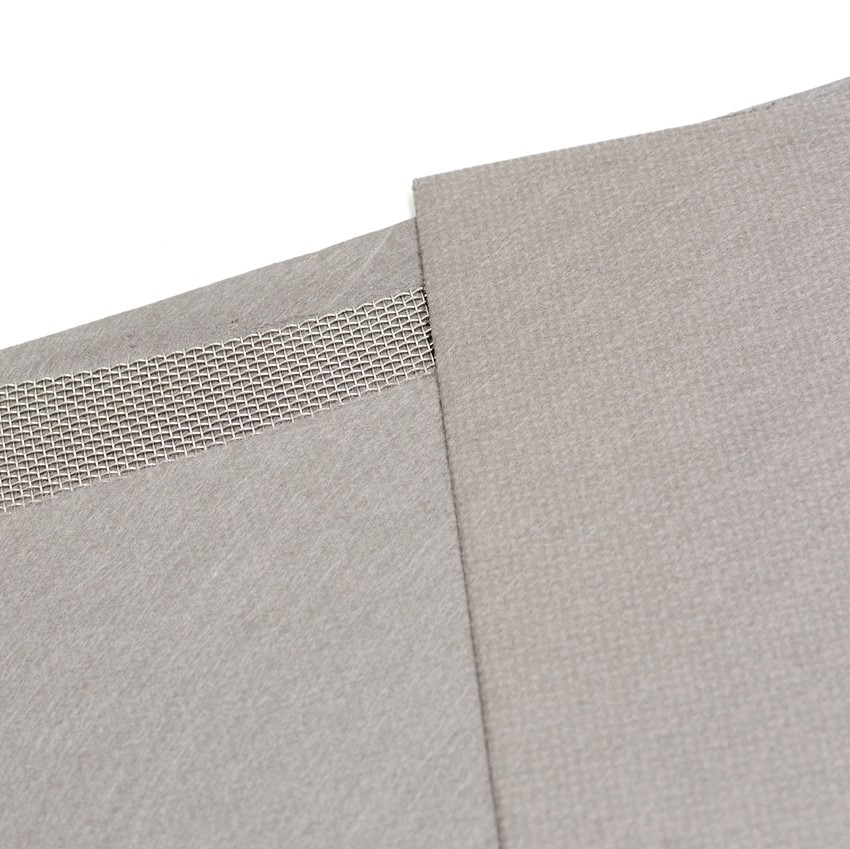

Sany sintered fiber felt with protective mesh
Sany sintered fiber felt with a intercalary support mesh

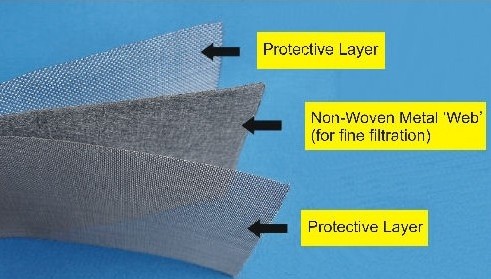

Sany sintered fiber felt with double protective mesh structure

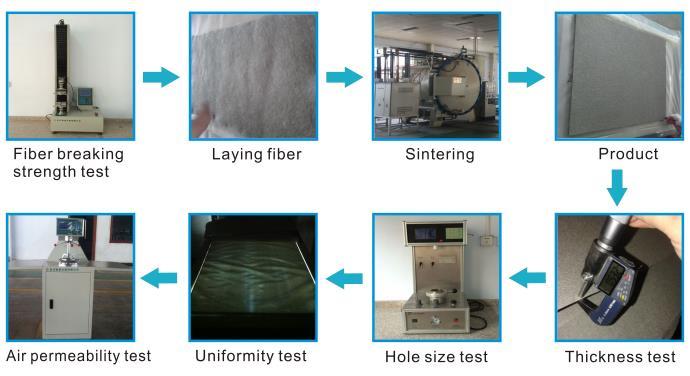

Sany sintered non-woven fiber felt process

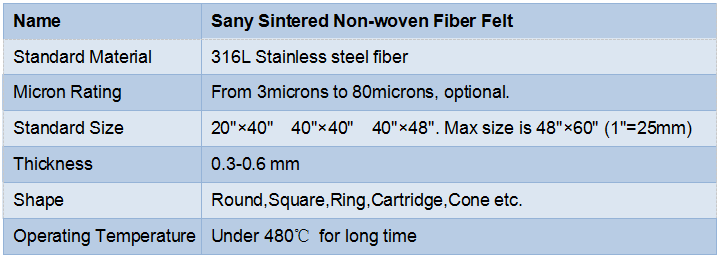

Sany sintered non-woven fiber felt technical parameters
Remarks:
1.Detection filter precision and dirt holding capacity according to GB/T18853-2002;
2.Detection bubble point pressure according to GB/T5249;
3.Detection air permeability according to GB/T5453, pressure difference is 200Pa, medium is air;
4.Detection breaking tenacity according to GB/T228;
Sany sintered non-woven fiber felt Character
1.High dirt holding capacity, high filtering accuracy, long replacement period;
2.High porosity ,excellent permeability,low pressure drop and large flow.
3.Corrosion and high temperature resistance of acid, alkali and organic solvent,pharmaceutical etc. Resistance , can be used under 480℃ for long time.
4.Easy to be processed and welded.
5.Special specifications are on request.
Compare with other filtering media
Sany sintered non-woven fiber felt can overcome the disadvantages of easy to be blocked and damaged of stainless steel mesh, and the disadvantages of fragile and low flow rate of sintered stainless steel powder filter,and has the advantages of resistant to high temperature and high pressure, of which normal filter paper and glass fiber can’t compare with.
Sany sintered non-woven fiber felt application
Polymer filtration, Petrochemical, High temperature gas dedusting, Oil refining process filtration,Adhesive filtration, Pre-filtration of ultrafilter, Vacuum pump protection filter, Filter membrane support body, Catalyst carrier, Automobile airbag, Aircraft ship and other fuel filtration,Hydraulic system filtration,etc.
